- High pressure Micro Gear Pump/Motor Assembly- 51X1BCT2GXX

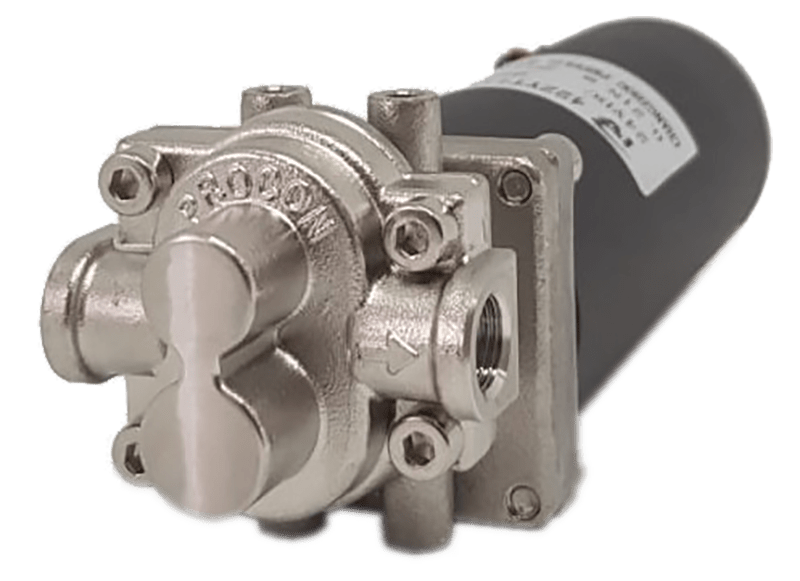

High pressure Micro Gear Pump/Motor Assembly- 51X1BCT2GXX
Product Type: Other Industries
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
35GPH
130LPH
145psi
Stainless Steel
NSF STD. 169 Listed
G 1/8"
Balances Silicon Carbide/Hard Carbon
-4°F
180°F
20000cP
4000RPM
DC
PROCON
No Cooling
3.3ft
2pH
84136039
Carbon Fiber PEEK
250psi
60dB(a)
130psi
500RPM
3A
IMB3
F
Brushed
0.05
0.05
40W
Pump/Motor Assembly
51X1BCT2GXX
High Pressure Micro Gear Pump
mGP10
8c70e161-7033-4615-8ae5-c46a186ea368CURVE_001.pdf
2.14lb (0.97Kg)
IP20
Counter Clockwise
3400RPM
Piece
Znode Multifront
24V
6.6ft
- Details
- Features
- Applications
- Documents
Flow Rate GPH
35GPH
Flow Rate LPH
130LPH
System Pressure (max)
145psi
Material
Stainless Steel
Agency Approvals
NSF STD. 169 Listed
Standard Ports
G 1/8"
Seal Type
Balances Silicon Carbide/Hard Carbon
Min Fluid Temperature
-4°F
Max Fluid Temperature
180°F
Max Fluid Viscocity
20000cP
Max Speed
4000RPM
Motor AC/DC
DC
Brand
PROCON
Motor Cooling
No Cooling
Dry Suction Lift
3.3ft
Fluid Acidity
2pH
HSS Commodity Code
84136039
Internal Component Material
Carbon Fiber PEEK
Max Discharge Pressure
250psi
Max Sound Level
60dB(a)
Max Static Pressure PSI
130psi
Min Speed
500RPM
Motor Current 1
3A
Motor Design
IMB3
Motor Insulation
F
Motor Type
Brushed
Motor Voltage 2
0.05
Motor Power 2
0.05
Motor Power 1
40W
Product Classification
Pump/Motor Assembly
Product Code
51X1BCT2GXX
Product Family
High Pressure Micro Gear Pump
Product Family Sub Group
mGP10
Product Performance
8c70e161-7033-4615-8ae5-c46a186ea368CURVE_001.pdf
Product Weight
2.14lb (0.97Kg)
Motor Protection
IP20
Rotation
Counter Clockwise
Motor Speed 1
3400RPM
UOM
Piece
Vendor
Znode Multifront
Motor Voltage 1
24V
Wet Suction Lift
6.6ft
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
