- Mag Drive Micro Vane Pump/Motor Assembly- 61R1FCF2QAP

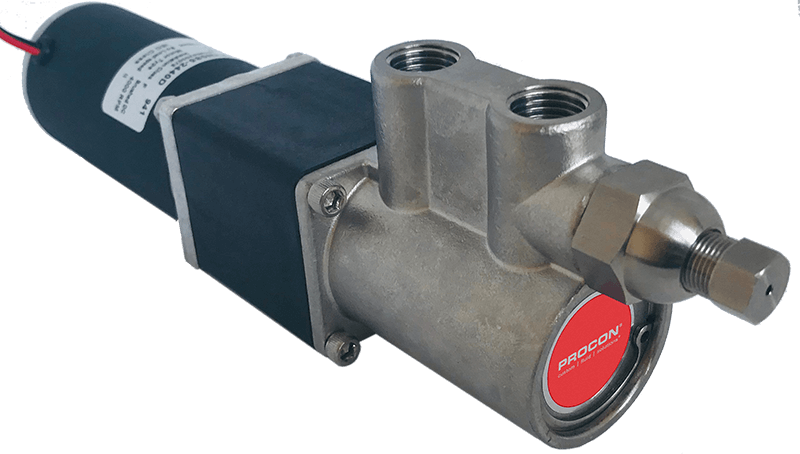

Mag Drive Micro Vane Pump/Motor Assembly- 61R1FCF2QAP
Product Type: Other Industries
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
25GPH
95LPH
150psi
Stainless Steel
NSF STD. 169 Listed
G 1/4"
-4°F
160°F
100cP
4000RPM
DC
PROCON
No Cooling
3.3ft
2pH
84138100
180psi
60dB(a)
100psi
800RPM
4.1A
F
Brushed
0.08
0.08
60W
Pump/Motor Assembly
61R1FCF2QAP
Mag Drive Micro Vane Pump
mVPMAG
e15a781c-dba8-4689-9a06-0aaca87f9c88CURVE_014.pdf
2.8lb (1.27Kg)
IP20
151 to 180psi (10 to 12.5 BAR)
Counter Clockwise
4000RPM
Piece
Solid- Ultem
Balanced- External adjust
Znode Multifront
24V
6.6ft
- Details
- Features
- Applications
- Documents
Flow Rate GPH
25GPH
Flow Rate LPH
95LPH
System Pressure (max)
150psi
Material
Stainless Steel
Agency Approvals
NSF STD. 169 Listed
Standard Ports
G 1/4"
Min Fluid Temperature
-4°F
Max Fluid Temperature
160°F
Max Fluid Viscocity
100cP
Max Speed
4000RPM
Motor AC/DC
DC
Brand
PROCON
Motor Cooling
No Cooling
Dry Suction Lift
3.3ft
Fluid Acidity
2pH
HSS Commodity Code
84138100
Max Discharge Pressure
180psi
Max Sound Level
60dB(a)
Max Static Pressure PSI
100psi
Min Speed
800RPM
Motor Current 1
4.1A
Motor Insulation
F
Motor Type
Brushed
Motor Voltage 2
0.08
Motor Power 2
0.08
Motor Power 1
60W
Product Classification
Pump/Motor Assembly
Product Code
61R1FCF2QAP
Product Family
Mag Drive Micro Vane Pump
Product Family Sub Group
mVPMAG
Product Performance
e15a781c-dba8-4689-9a06-0aaca87f9c88CURVE_014.pdf
Product Weight
2.8lb (1.27Kg)
Motor Protection
IP20
Relief Valve Set Pressure Range
151 to 180psi (10 to 12.5 BAR)
Rotation
Counter Clockwise
Motor Speed 1
4000RPM
UOM
Piece
Valve Type
Solid- Ultem
Valve Configuration
Balanced- External adjust
Vendor
Znode Multifront
Motor Voltage 1
24V
Wet Suction Lift
6.6ft
* Flowrate may vary with Viscosity. Flowrate basted on pumps tested with water at room temperature at 14.5psi (1BAR)
